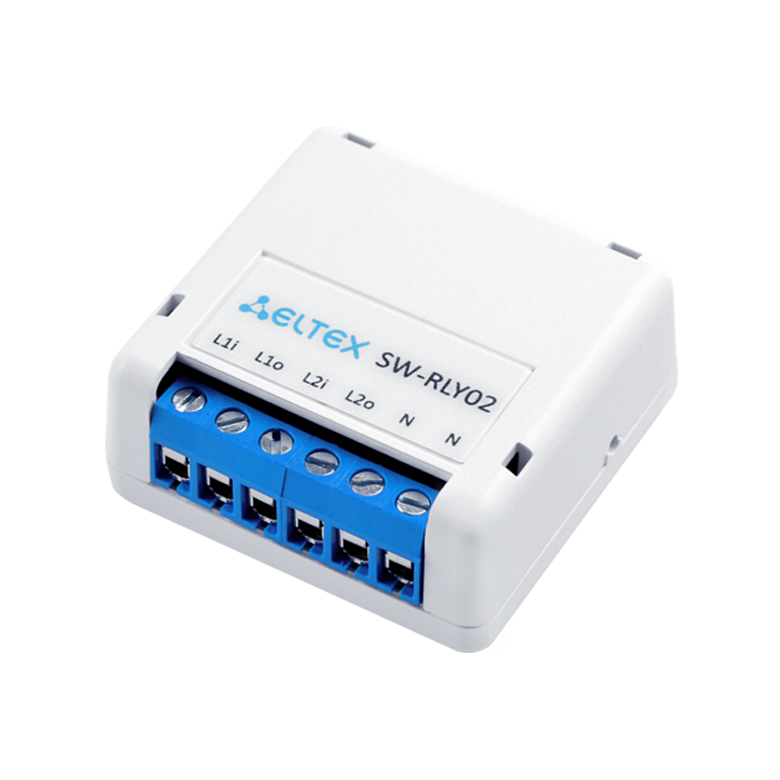

Wi-Fi lighting control relay SW-RLY02

• Wireless lighting control
• 2 managed channels
• Easy installation for rooms with standard electrical wiring

SW-RLY02 is a Wi-Fi relay designed for lighting unitsmanagement. The device connects to the router’s home Wi-Fi network and interacts with the Eltex Homemobile application from anywhere in the world. The relay supports both incandescent and LED lighting fixtures. SW-RLY02 is housed in a compact plastic casing which allows it to be installed in distribution boxes under the ceiling or in the wiring space for lighting units.

Eltex Smart Home SW-RLY02 is part of the Eltex smart home ecosystem based on Etex SC (Eltex Smart Cloud) platform. The user controls smart devices and sensors via a smart home hub using an iOS or Android mobile device with Eltex Home mobile application installed. SW-RLY02 belongs to the Management service of Eltex smart home.

• WLAN - IEEE 802.11 b/g/n 2.4 GHz
• Input voltage - 230 V
• Connection type - with null line
• Number of channels - 2
• Maximum load per channel - 800 W
• Maximum LED load per channel - 100 W
• Maximum current per channel - 3.5 A (resistive load)
• Dimensions (W × H × D) - 43.5 × 18 × 43.5 mm
• Weight - 0.034 kg
• Ingress protection - IP30
• Operating temperature - from +5 to +45 °C
