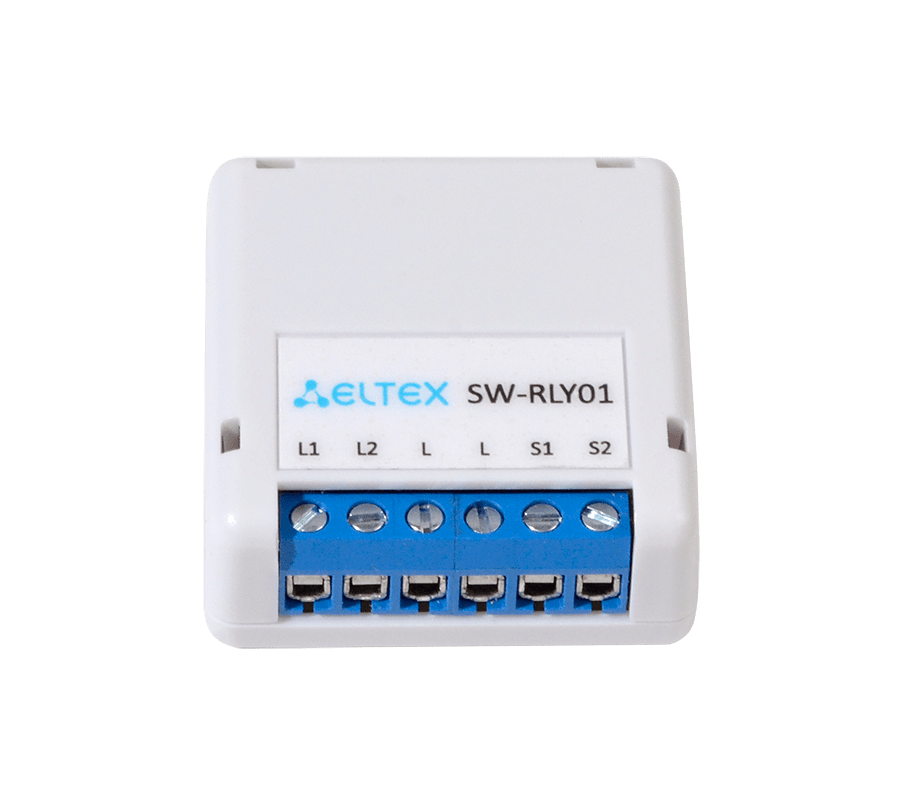

Wi-Fi lighting control relay SW-RLY01

Wi-Fi relay SW-RLY01 is a device for remote lighting control.

Lighting control
The device supports both incandescent and LED lighting sources. SW-RLY01 does not require a zero line connection.

Form factor
The device has a compact plastic housing, allowing it to be installed in junction and socket boxes.

• WLAN - IEEE 802.11 b/g/n 2.4 GHz
• Operating voltage - 170–250 V
• Connection type - no zero line
• Number of channels - 2
• Maximum load per channel - 800 W
• Maximum current per channel - 3.5 A (resistive load)
• Dimensions (WхHхD) - 43.5х18х43.5 mm
