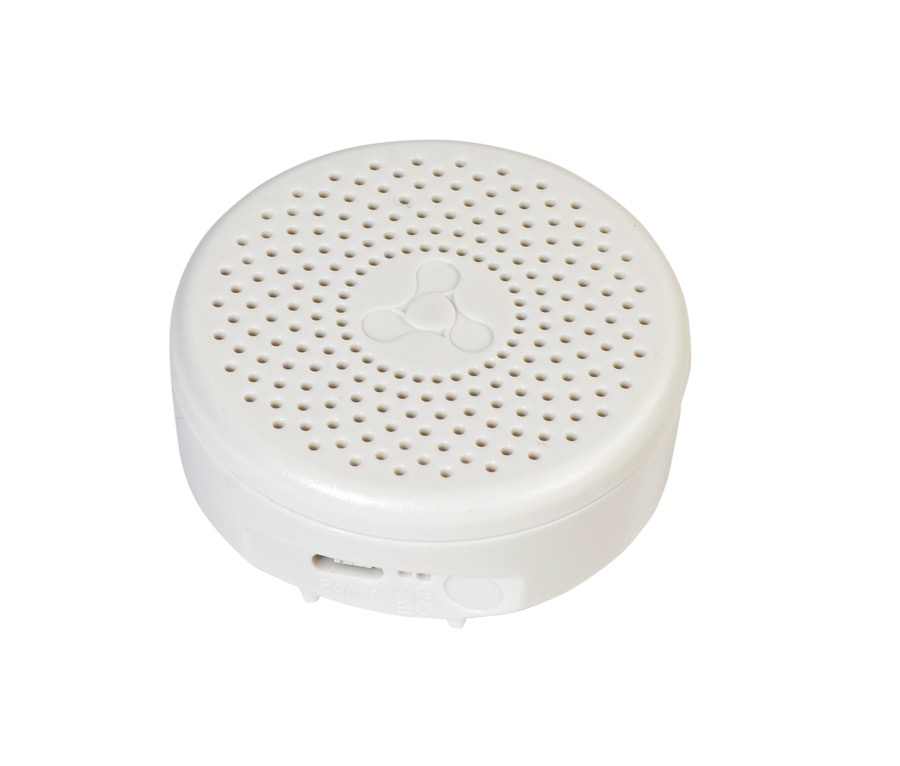

Temperature and humidity sensor SZ-AIR-HT01

• Z-Wave
• OTA remote update
• Possibility of connecting the external temperature sensor via 1-Wire interface

SZ-AIR is an air sensor which operates based on wireless technology.

In case of degraded air quality, the sensor sends an alarm signal to the main “ELTEX SC” controller. The module can operate in any “ELTEX SC” network with certified devices of any other manufacturers.

• Sensor colour coding - blue
• Measured features - humidity
• Signal frequency - 869 MHz
• Controller reception range - 100 m (direct visibility)
• Maximum signal power - +14 dBm
• External temperature sensor connection - via 1-Wire interface
• Protection level - IP20
• Update - OTA remote update
• Power supply - lithium-type battery CR123A, 3 V or power module with microUSB
• Dimensions - Ø70 mm, h = 31 mm
• Weight (including battery supply) - 100 g max
• Operating temperature - from +5 to +40 °C
• Relative humidity at +40 °С - 95 % max (without condensing)
