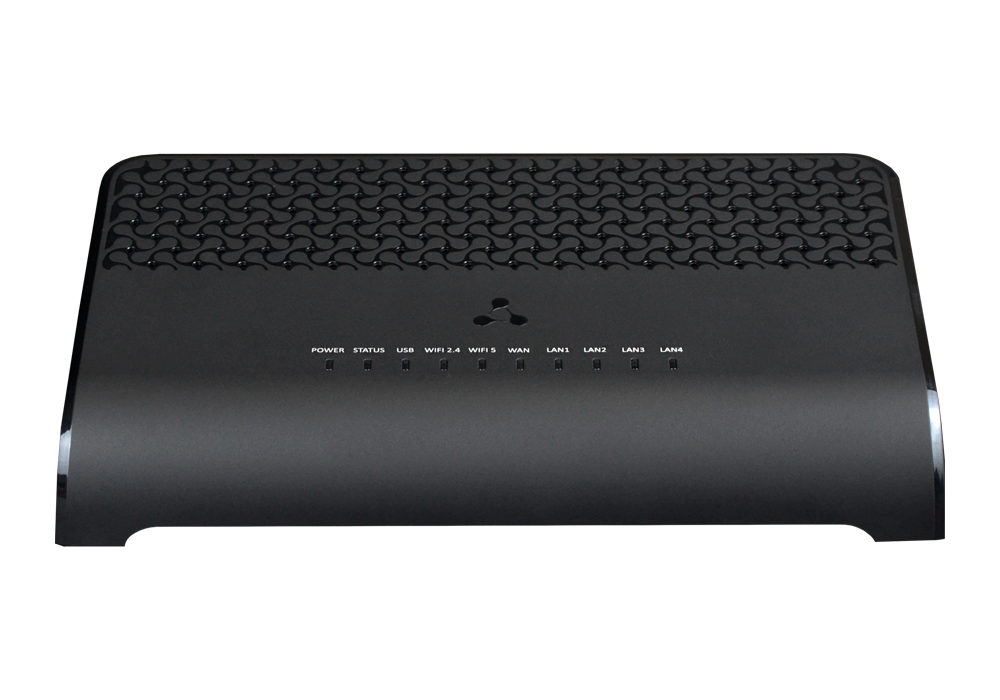

Subscriber router RG-5520G-Wax-Z

• Dual core 1.15 GHz processor
• WAN Ethernet port 2.5 Gbps
• LAN Ethernet port 1 Gbps
• Dual-band Wi-Fi with speeds up to 1774.5 Mbps
• 2×2 MU MIMO
• TR-069
• Guest Wi-Fi (Multi-SSID)
• Customization
• AX1800 Wi-Fi class
• Wi-Fi a/b/g/n/ac/ax
• Wi-Fi EasyMesh (802.11 k/v)¹

• Smart home (Zigbee², Z-Wave)


RG-5520G-Wax-Z - dual band Wi-Fi router with GbE WAN port and a 2.5 GbE WAN port with a high-performance dual core processor. The device supports the 802.11ax standard which simultaneously works with two streams delivering rates of up to 1.201 Gbps on the 5 GHz band. The MU MIMO technology makes the device a universal solution for enterprise networking.

Simplified administration
Centralized configuration uploading, intelligent update of firmware and collection of data on the statuses of subscriber devices are implemented in the ELTEX.ACS system based on theTR-069 protocol. The system provides simplicity of ELTEX CPE management and decreases operating expenses (OPEX) for network maintenance

Customization
The following means of customization are available: case color changing, logo placement, package extension and other options on request.

Advantages of EasyMesh technology¹

• Network intelligence: a self-organizing and self-optimizing network collects information and responds to network conditions
• for maximum performance
• Efficient load balancing: allows devices to switch to a better connection and avoid interference
• Scalability: allows adding multi-vendor Wi-Fi EasyMesh access points

Smart home hub
The devices include “Smart home” hubs that support the operation with sensors and devices by the following protocols:

• Zigbee² (via external USB adapter);
• Z-Wave, (via embedded module).

Main technical parameters

• RAM 256 MB
• Flash 128 MB

Interfaces

• 1 × WAN 10/100/1000/2500BASE-T (RJ-45)
• 4 × LAN 10/100/1000BASE-T (RJ-45)
• Wi-Fi 2.4 GHz b/g/n/ax
• Wi-Fi 5 GHz a/n/ac/ax
• 1 × USB 2.0
• "Smart Home" management interface:
  • Zigbee1 (via external USB adapter);

  • Z-Wave, (via embedded module).

Network features

• MultiWAN

• QoS
• NAT
• Port forwarding
• DMZ
• ALG (FTP, TFTP, H323, SIP, PPTP)
• IP Passthrough
• Router/bridge mode operation
• DHCP server on the LAN side
• Firewall
• Static and dynamic routing
• Dynamic DNS
• Multiservice model: separate network parameters configuration per service: Internet, TR-069, IPTV
• UPnP
• IGMP Snooping
• IGMP Proxy
• MLD Snooping
• MLD Proxy

• UDP-to-HTTP Proxy
• Time synchronization via NTP
• Restriction of the access to the device via WAN and LAN
• SSH
• Telnet
• Jumbo Frame (up to 9200 bytes)
• IPv4, IРv6
• 3G/4G modems
• FTP, Samba, DLNA

Connection types

• Static IP address

• DHCP
• PPPoE
• L2TP
• PPTP


Wireless interface parameters

• EasyMesh (IEEE 802.11k/v)2

• WPA/WPA2/WPA3 encryption standards
• Frequency range:
  • 2402–2482 MHz
  • 5170–5330 MHz
  • 5650–5835 MHz
• MIMO:
  • 2.4 GHz: 2×2 MU MIMO
  • 5 GHz: 2×2 MU MIMO
• Maximum power of the transmitter:
  • 2.4 GHz: 21 dBm
  • 5 GHz: 22 dBm
• Antenna gain:
  • 2.4 GHz: 2×3 dBi
  • 5 GHz: 2×4 dBi
• Receiver sensitivity:
  • 2.4 GHz: up to -94 dBm
  • 5 GHz: up to -95 dBm
• Data rate:
  • 2.4 GHz: up to 573.5 Mbps (HE40_MCS11)
  • 5 GHz: up to 1201 Mbps (HE80_MCS11)

Management and diagnostics

• Web interface

• TR-069
• SSH
• Telnet

Physical specifications

• Power supply via 12 V DC, 2 A
• Maximum power consumption — 16 W
• Operating temperature range: from +5 to +40 °C
• Relative humidity at 25 °C: up to 80 %
• Dimensions (W × H × D): 230 × 35 × 138 mm
• Weight: 0.359 kg
