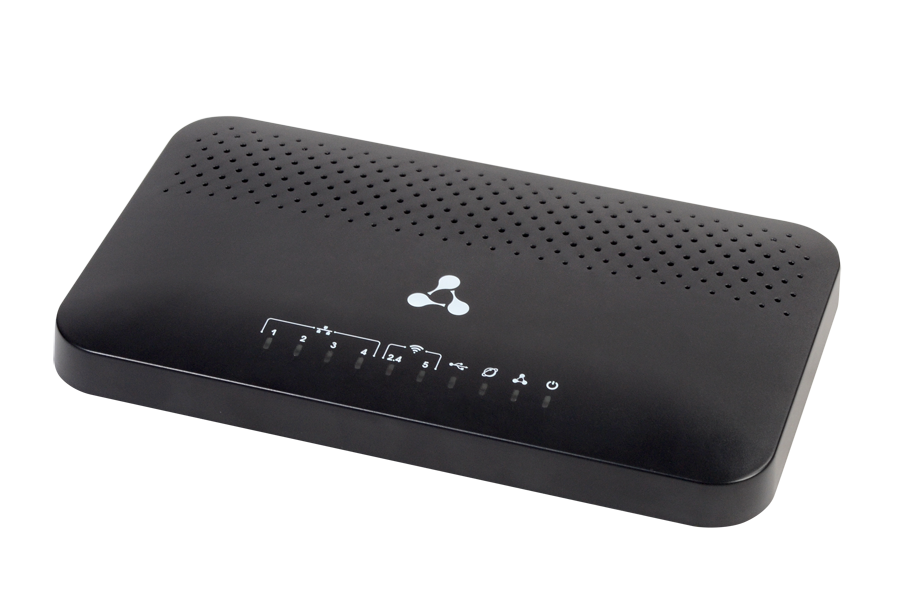

Subscriber router RG-5440G-Wac

Key features

• High performance
• Dual Band Wi-Fi 802.11a/b/g/n/ac
• Support for 3G/4G modems
• TR-069
• 4 ports of LAN Gigabit Ethernet
• Customization
• USB device access via FTP/Web
• Guest Wi-Fi (Multi-SSID)
• Wi-Fi EasyMesh

Single access point
RG-5440G-Wac routers are access points to modern interactive services through wired and wireless data transport networks.

IPTV transmission through Wi-Fi at 5 GHz frequency
Devices provide advanced functionality for stable IPTV delivery through wireless network: smooth and uninterrupted video playback is provided by special software functionality. The router allows operation at 2.4 and 5 GHz frequencies and also provides simultaneous video streams broadcast and data transmission.

Customization
The following means of customization are available: case color changing, logo placement, expansion of complete set and other options by additional requests.

Advantages of EasyMesh topology

• Network intelligence: a self-organizing and self-optimizing networks collects information and responds to network conditions for maximum performance.
• Efficient load balancing: allows devices to switch to a better connection and avoid interference.
• Scalability: allows adding multi-vendor Wi-Fi EasyMesh access points.

Simplified administartion
Centralized configuration uploading, intelligent update of firmware and data collection on subscriber devices are realized in TR-069-based Eltex.ACS system. This system provides simplicity of Eltex CPE management and decreases operating expenses (OPEX) for network maintenance.

Main technical parameters

• WiFi:
  • RTL8192FR (2.4 GHz)
  • RTL8814BR (5 GHz)
• RAM 256 MB
• Flash 128 MB
• OS Linux 4.4

Interfaces

• 1 port of WAN 10/100/1000 (RJ-45)
• 4 port of LAN 10/100/1000 (RJ-45)
• Wi-Fi 2.4 GHz b/g/n and 5 GHz a/n/ac
• 1 x USB 2.0


Network features

• Support for MultiWAN
• Quality of Service (QoS)
• NAT
• Port forwarding
• Router/bridge mode operation
• DHCP server on the LAN side
• Firewall
• Static and dynamic routing
• Support for Dynamic DNS
• Multiservice model: separate network parameters configuration per service: Internet, VoIP, IPTV
• Support for UPnP
• Support for IGMP
• Time synchronization via NTP
• Restriction of the access to the device via WAN and LAN
• Telnet
• IPv4, IРv6

Connection types

• Static IP address
• DHCP
• PPPoE
• L2TP
• PPTP

Wireless interface parameters

• Support for EasyMesh
• WPA/WPA2/WPA3 encryption standards
• Support for WPA Enterprise
• Support for WMM
• Support for WPS
• Wireless Multicast Forwarding
• Wi-Fi IEEE 802.11a/b/g/n/ac/k/v
• Frequency range:
  • 2412-2472 MHz
  • 5180-5320 MHz
• MIMO:
  • 2.4 GHz 2х2
  • 5 GHz 4х4

Management and diagnostics

• Web interface
• TR-069

Physical specifications

• Power supply via 12 VDC, 2A power adapter
• Maximum power consumption — 16 W
• Operating temperature range: +5 to +40°C
• Relative humidity at 25°C: up to 80%
• Dimensions (W x H х D): 234 x 36 x 135 mm
• Weight: 0.456 kg
