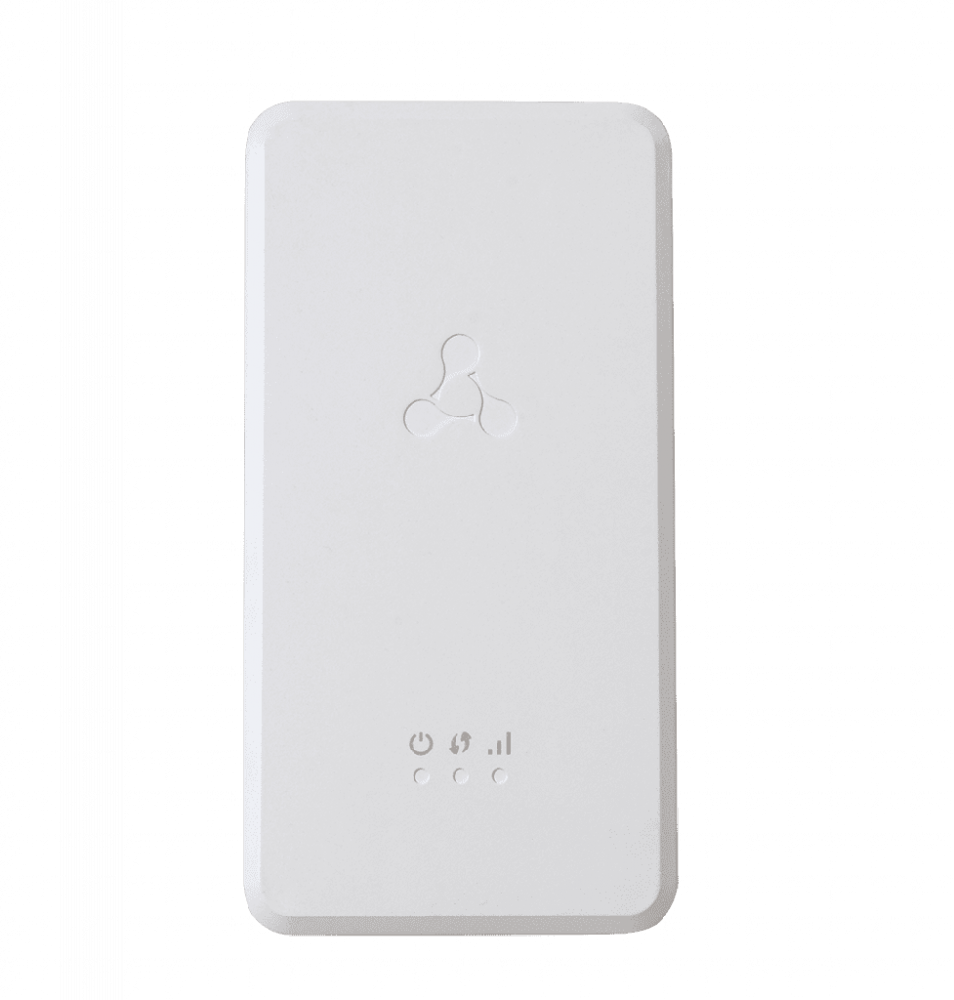

Repeater RR-11

• 1 Ethernet port
• Dual-band Wi-Fi
• Wi-Fi EasyMesh
• Wi-Fi AC1200


RR-11 is a wireless signal repeater designed to extend wireless networks coverage area and amplify Wi-Fi signal strength. The device helps to eliminate blind spots and optimize your Wi-Fi network operation.

Wireless connection
RR-11 repeater provides high data rate due to the support for IEEE 802.11n/ac standards. MIMO technology and internal antennas make RR-11 a universal solution for extending a home network and providing high-quality 4K multimedia.

Advantages of EasyMesh technology

• Network intelligence: a self-organizing and self-optimizing network collects information and reacts to events for maximum performance
• Efficient load balancing: allows devices to switch to a better connection and avoid interference
• Scalability: allows adding Wi-Fi EasyMesh access points from different vendors

Main technical specifications

• RAM 128 MB

• Flash 16 MB
• OS Linux 3.10

Interfaces

• 1 x 10/100/1000BASE-T (RJ-45) Ethernet port
• Wi-Fi IEEE 802.11b/g/n 2.4 GHz and 802.11a/n/ac 5 GHz

Wireless interface parameters

• EasyMesh support (IEEE 802.11k/v)
• WPA/WPA2 encryption protocols
• WMM (IEEE 802.11e)
• WPS
• Wireless Multicast Forwarding

Frequency range:

• 2402-2472 MHz
• 5170-5330 MHz
• 5650-5835 MHz

MIMO:

• 2.4 GHz 2х2 SU-MIMO

• 5 GHz 2х2 SU-MIMO

Maximum power of the transmitter1

• 2.4 GHz: up to 20 dBm
• 5 GHz: up to 20 dBm

Antenna gain:

• 2.4 GHz: 3.5 dBi
• 5 GHz: 3 dBi

Receiver sensitivity:

• 2.4 GHz:
  • up to -90 dBm (MCS0, HT20)
  • up to -71 dBm  (MCS7, HT20)
• 5 GHz:
  • up to -93 dBm  (MCS0, HT20)
  • up to -73 dBm  (MCS7, HT20)

Data rate:

• 2.4 GHz: up to 300 Mbps
• 5 GHz: up to 867 Mbps

Management and diagnostics

• Web interface
• TR-0692

Physical parameters

• Power consumption: no more than 7 W
• Power supply: 230 V, plug type: EU
• Operating temperature: from +5 to +40 °C
• Operating humidity at 25 °C: up to 80%
• Dimensions (WхHхD): 68х131х73 mm
