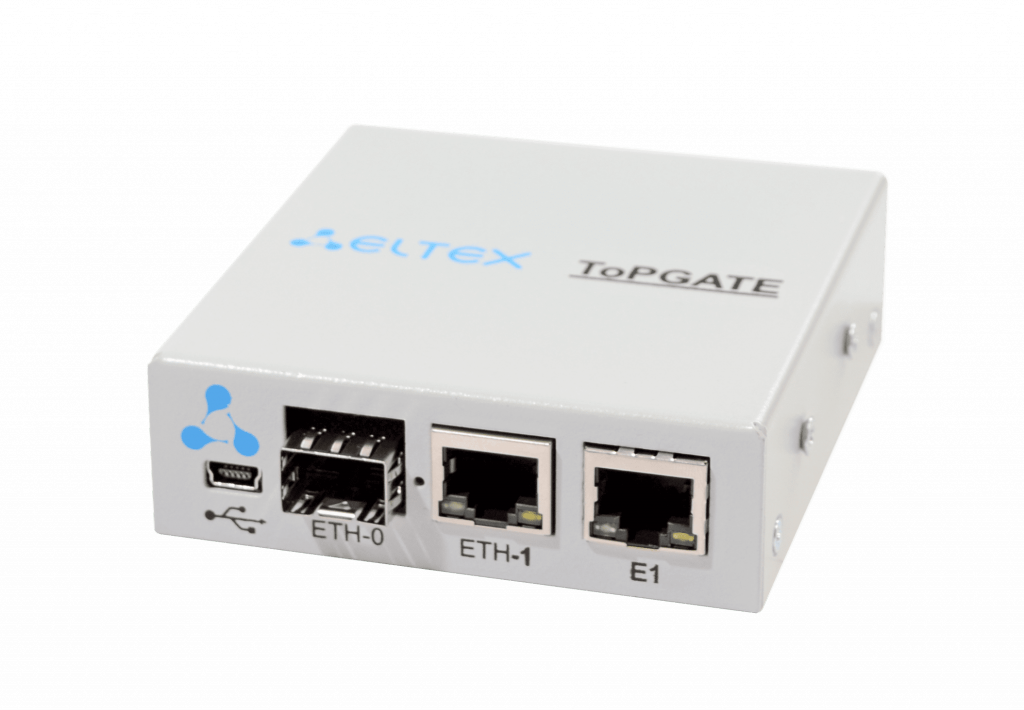

Optical multiplexer TopGATE-1E1-1FG

Compact size, 19" rack mounting
Low-cost equipment and maintenance
Transmission of single structured or unstructured E1 stream through data network without quality
deterioration
Unique algorithms of frequency recovery which provide stable operation on real networks
Unified interface with ToPGATE series devices for combination of 100M, 1G and 10G networks based on cooper, optical and wireless technologies
Local (via serial port Mini USB) and remote management and diagnosis
Support for SNMP, Web, Telnet, SSH, RADIUS, TACACS+
Opportunity to control devices through Eltex-EMS management system

E1 interfaces

Quantity: 1 RJ-45
Standards: G.703, G.704, G.706, G.823
Interface: symmetric 120 Ohm, HDB3/AMI
Synchronisation: inner, incoming Е1 stream synchronisation
Link distance: 500 m

TDM over Packet Network (Ethernet/IP)

TDMoP, SAToP, CESoPSN
ransmission delay: 1-2000 ms
1+1 redundancy

Ethernet interfaces

Quantity: 1 RJ-45, 1 SFP
Type 10/100/1000 Mbps Auto MDI/MDI-X RJ-45
Type IEEE 802.3 1000Base-X
Support for IEEE 802.3, 802.3u, 10Base-T, 100Base-TX, 1000Base-TX standards

Management means

Telnet CLI, menu
SSH
Web interface
SNMP v1, v2c, v3
RADIUS, TACACS+ authentication

Parameters

MAC table: 8192 entries
Embedded switch bandwidth: up to 2 Gbps, 2.98 Mpps;
Maximum frame size: 10240 bytes

Capabilities

4 priority queues 802.1p
QoS based on: switch port, VLAN, DSCP, source/destination MAC address
VLAN: IEEE 802.1Q standard, values range from 0 to 4095, Q-in-Q - double tagging
IGMP Snooping
MVR (Multicast VLAN Registration)
Local traffic mirroring
Support for NAT for E1 transmission
PIRL – Port Ingress Rate Limit – bandwidth limiting for incoming traffic per ports
FlowControl
SAFilter – MAC address filtering
Scheduling – frames output planning
DyingGasp – message sending to syslog server in case of powerdown or reload

Dimensions

Dimensions (WxHxD, mm): 82х26х85.5, 19" formfactor
Weight 0.25 kg

Power supply

220 VAC, 12 VDC (the convector ~220V into 12V is in the package)
Maximum power consumption 6W
