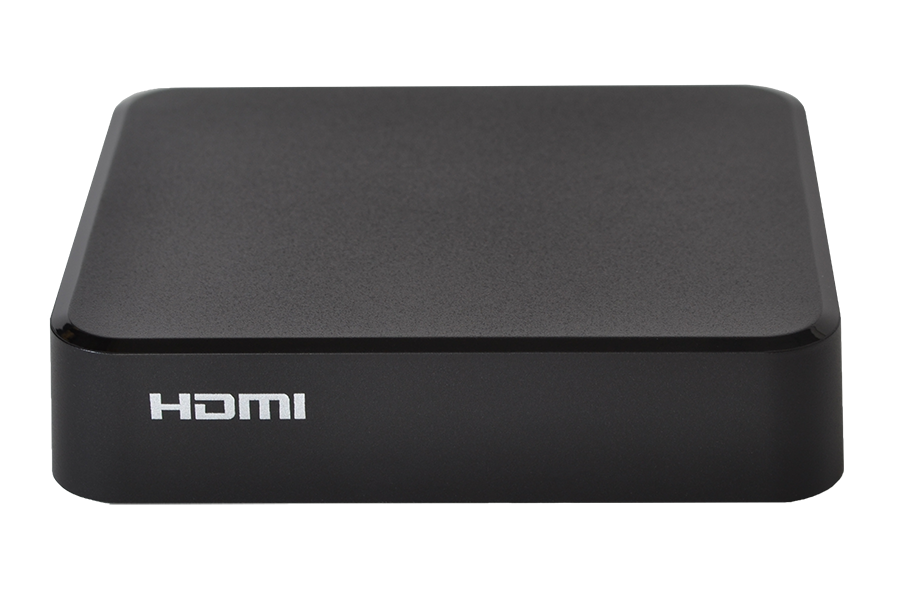

IPTV Set-top Box NV-731-WB

Key benefits

• 2D/3D-accelerators, support for OpenGL 3.2
• OS Android 11
• App store
• Support for widely used Middleware
• Android API, SDK
• H.265
• 4Kp60 decoding
• Wi-Fi 802.11a/b/g/n/ac MIMO 1x1
• HDMI 2.1

NV-731 series Smart TV set-top boxes based on Android ensure a new level of service provision. NV-731 is an excellent way to promote digital television services and to attract new customers.

Android platform
Android enables creating a single universal platform with access to different services, including AndroidTV interface.

Customized app store creation
The open platform and development kit (SDK, API) allow service providers to manage access to services and create new ones.

Up-to-date Wi-Fi technologies
NV-731-WB supports up-to-date Wi-Fi standards: 802.11a/b/g/n/ас. The device implements stable real-time traffic transmission.

Peer-to-Peer TV
NV-731 series devices support real-time playback of media files via DC++ protocol without connecting to a PC or files preloading to local disk. Background loading of files, load queue creation and organization of an illustrated page (catalogue) for media content are available with NV-731 series set-top boxes.

Basic services

• HD/UHD IPTV
• OTT
• VoD
• Media player (files playback from external storage or local network)
• Electronic program guide (EPG)
• Support for cloud services
• Online sources: YouTube, Internet radio, etc.
• Provider’s app store
• Support for HLS
• Peer-to-Peer TV (streaming via DC++)

Hardware capabilities

• 16560 DMIPS
• 1 GB RAM
• 8 GB Flash
• 2D/3D-accelerators, OpenGL
• OS Android 11
• Support for H.265
• 4Kp60 decoding
• HDR

General features

• Support for HLS
• Support for CAS, DRM
• Support for UHD 4K, FHD 1080p/i, HD 720p/i
• Multilingual interface
• Keyboard and mouse connection support
• Management and voice search:
  • IR remote control
  • Bluetooth remote control (optionally)
  • Software remote control — Android app

Interfaces

• 1 × LAN 10/100
• 2 × USB 2.0
• HDMI 2.1
• AV output
• MicroSD

Video

• Resolution: UHD 2160p, FHD 1080p, HD 720p
• Supported formats: MPEG1, MPEG(+HD), MPEG4(+HD), XvID, DivX, H.264, AVCHD, Vc1, H.265

Audio

• 44.1, 48, 96 kHz

Network

• Supported protocols: IP, HTTP, DHCP, NTP, IGMP (multicast), ICMP, UDP, RTP, RTSP, DLNA, SAMBA, HLS

Services

• Customized app store, Android applications, Google Play
• Firmware update via a customized app store
• Support for local update
• Interface and settings customization

Wi-Fi wireless connection

• Dual band Wi-Fi IEEE 802.11a/b/g/n/ac, 2.4/5 GHz
• Embedded antenna

Bluetooth support

• Management
• Voice search

Physical specifications

• Dimensions (W × H × D): 100 × 22 × 84 mm
• Desktop case
• Case material: IR transparent plastic

Power supply

• Power adapter: 5.3 V / 2 A

Delivery package

• Smart TV set-top box
• Power adapter
• IR remote control
• Batteries for IR remote control — 2 pcs.
• Bluetooth remote control (optionally)

• HDMI cable
• Installation and initial configuration guide
