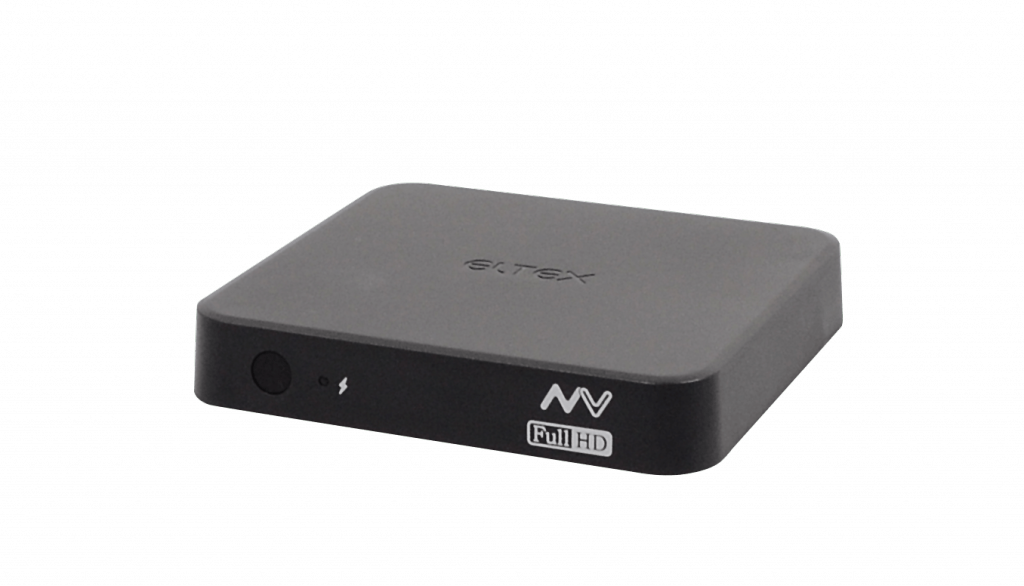

IPTV Set-top Box NV-501

• Realtek RTD1195C chipset

• ARM architecture
• 2D/3D acceleration, OpenGL support
• Android 4.4
• Peer-to-peer
• Application store
• Support of widely used middleware
• Android API,SDK
• Java Script API, SDK
• H.265 support
• 4Kp30 decoding
• Access point mode

The Eltex NV IPTV set-top box on Android provides services on a new level. It is a perfect tool for promotion of IPTV services and acquisition of new customers.

Android Platform
Android serves as a single universal platform to provide access to services and functions with a familiar interface such as AndroidTV.

Creation of a Customised Application Store
It provides an open platform and development tools (SDK, API) for quick creation of new operator services.

Advantages of the Hardware
A dual core Realtek processor supports a wide range of video and audio formats.

Peer-to-Peer TV
An additional option of content delivery is available: multimedia file streaming to STB via DC++ and Torrent protocols. Without PC and files download to a local disk. A capability is available to add an illustrated page (catalogue) for media content.

• Full HD IPTV
• OTT
• VoDMedia Player (files playback from external device and local network).
• Program schedule (EPG)
• Cloud support
• Online resources: Youtube, Internet radio, etc
• Store for provider's applications
• HLS
• Peer2Peer TV (video streaming via DC++, Torrent)

• 1 х LAN 10/100/1000
• 2 x USB 2.0
• HDMI 1v4
• microSD Card Reader
• Port for external receiver
• AV output

• Realtek RTD1195 processor
• ARM Artchitecture
• More than 4 000 DMIPS
• 1 Gb RAM
• 4 Gb Flash
• 2D/3D accelerations, Open GL
• Android 4.4
• H.265
• Decodong 4К р30

• HLS
• DRM: A.R.E.S. DRM, Verimatrix
• Full HD, 1080p, 4Kp30
• Multilinguality
• Remote controller, an opportunity to connect computer mouse or keyboard
• Programmable remote controller: Android-application
• AV output

• Screen resolution: Full HD 1080p, HD 720p
• Video formats: MPEG1, MPEG2(+HD), MPEG4 (+HD), XviD, DivX, H.264, WMV9, AVCHD, VC1, HEVC

• 44.1, 48, 96 kHz


• Protocols support: IP, HTTP, DHCP, NTP, IGMP (multicast), ICMP,UDP, RTP, RTSP, PPPoE, HLS, DLNA, SAMBA,Bit-torrent


• Operator's store of applications, Android applications, Google Play


• Dual band Wi-Fi IEEE 802.11 b/g/n/ac, 2.4/5 GHz
• Integrated antenna

• Dimensions (LхWхH), mm: 100х89х18
• Horizontal placement, wall mounting
• Material: plastic

• IPTV Set-Top-Box NV-501
• Power supply
• Remote controller
• 2 ААА batteries
• HDMI cable
• Patch cord RJ-45
• Quick user manual
