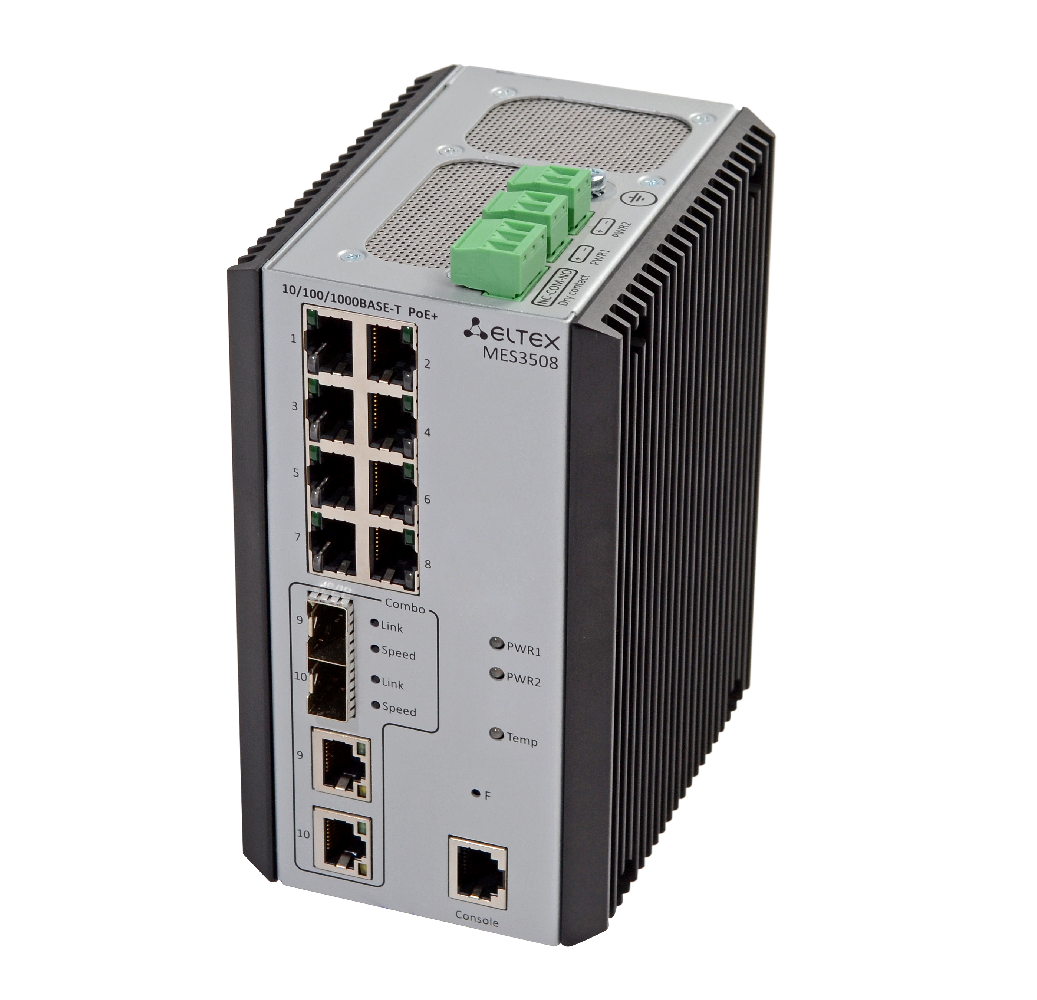

Industrial switch MES3508
Overview
Specifications
Reviews
Key features
- L2 switch
- Din-rack mount
- Dry contacts
- Industrial range
MES3508 industrial switches by Eltex are designed to organize secure fault-tolerant networks on sites with high requirements to temperature, vibrations, mechanical impact, etc. The switches have 10/100/1000BASE-T with PoE/PoE+1 support and Combo ports of 10/100/1000BASE-T/1000BASE-X/100BASE-FX for optional connection of fibre cable.
Interfaces
Standarts
Protocols and functions
Common parameters
Technical features
Power supply
Physical parameters
Environmental features
- 8х10/100/1000BASE-T (RJ-45)
- 2хCombo 10/100/1000BASE-T (RJ-45)/1000BASE-X/100BASE-FX
- Console port: RS-232 (RJ-45)
Standarts
- IEEE 802.3i (10BASE-T)
- IEEE 802.3u (100BASE-T(X), 100BASE-FX)
- IEEE 802.1q (VLAN Tagging)
- IEEE 802.3ab (1000BASE-T(X))
- IEEE 802.3x (Flow Control)
- IEEE 802.1d (Spanning Tree Protocol (STP))
- IEEE 802.1s (Multiple Spanning Tree Protocol (MSTP))
- IEEE 802.1q (VLAN Tagging)
- IEEE 802.1p (Class of Service (CoS))
- IEEE 802.1x (Authentication)
- IEEE 802.3ad (Link Aggregation Control Protocol (LACP))
- IEEE 802.1ab (Link Layer Discovery Protocol (LLDP))
Protocols and functions
- SNMPv1/v2c/v3
- DHCP Server/Client
- DHCP Option 66/67/82
- BootP
- TFTP
- HTTP
- HTTPS
- Telnet
- SSH
- Syslog
- IPv6
- Port Security
- IP Source Guard
- Port Monitor
Common parameters
- Packet processor Marvell 98DX3333A1-BTD4I000 (PonCat3 Industrial)
- Bandwidth: 20 Gbps
- Throughput for 64 bytes: 14 MPPS
- Quality of Service (QoS): 8 egress queues per port
- VLAN table: 4K
Technical features
- MAC table: 16K
- Buffer memory: 12 Mb
- RAM (DDR3): 512 MB
- ROM (RAW NAND): 512 MB
- TCAM: 3K
- Jumbo frames size: 10240 bytes
Power supply
- Power supply voltage: 20~70 VDC
- Reverse polarity protection
- Max. power consumption (including PoE): 15 W max
- Alarm relay: 1 relay output of emergency alarm - 1A 24 VDC
Physical parameters
- Device housing: Metal, IP30
- Form factor: DIN molding for wall mounting (as an optional extra)
- Dimensions (WxHxD): 85 х 152 х 115 mm
Environmental features
- Operating temperature: from -40 to +70° С
- Storage temperature: from -40 to +85° С
- Operating humidity: from 5 to 95% (without condensation)
- Security UL 508
- Electromagnetic compatibility:
- Application within power engineering facilities:
- Strike IEC 60068-2-27
- Free falling IEC 60068-2-32
- External mechanical actions 0.5-55 Hz, 1g, hit-and-run 3g strikes
- EN 55022 Class A
- EN 61000-4-2 (ESD) Level 3
- EN 61000-4-3 (RS) Level 3
- EN 61000-4-4 (EFT) Level 3
- EN 61000-4-5 (Surge) Level 3
- EN 61000-4-6 (CS) Level 3
- EN 61000-4-8
- EN 61000-4-2 (ESD) Level 3
- EN 61000-4-3 (RS) Level 3
- EN 61000-4-4 (EFT) Level 3
- EN 61000-4-5 (Surge) Level 3
- EN 61000-4-6 (CS) Level 3
- EN 61000-4-8
- IEC 61850-3
- IEEE 1613
- IEEE 1613
