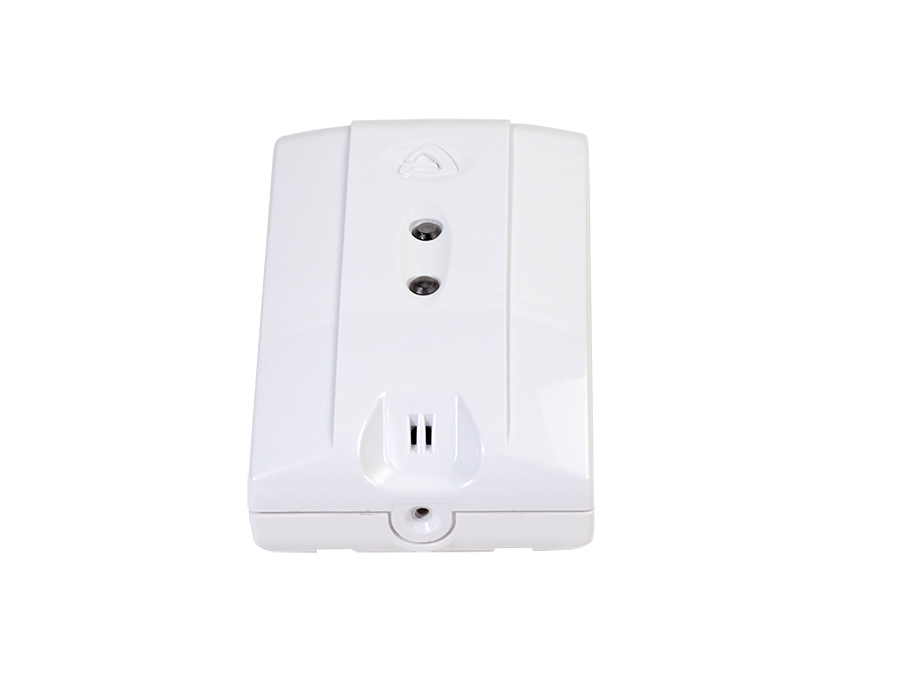

Glass break sensor SZ-GLB

Key features

• Wireless connection
• Mesh networks forming possibility
• Automatic sending of data to controller

SZ-GLB is a glass break sensor designed to detect the destruction of glazed structures inside enclosed spaces. It can work in any «Smart home» platform network with certified devices from different vendors.

Operation principle
When the sensor is triggered, the LED on the device case lights up red and then green. The message about glass integrity violation is sent to the main «Smart home» network controller.

Main technical parameters

• Signal frequency - 869 MHz
• Maximum connection range - 100 m (direct visibility)
• Vertical detection range - 90°
• Maximum horizontal connection range - 120°
• Protected glass area (one of sides should be at least 0.3 m) - at least 0,1 m
• Maximum radio signal power - +14 dBm

Physical specifications and ambient parameters

• Power supply - lithium battery CR123A, 3V
• Protection level - IP40
• Dimensions - 90х57х34 mm
• Weight, including battery - 100 g
• Operating temperature - –10 to +55 °C
• Relative humidity at +35° - up to 95% without condensing
