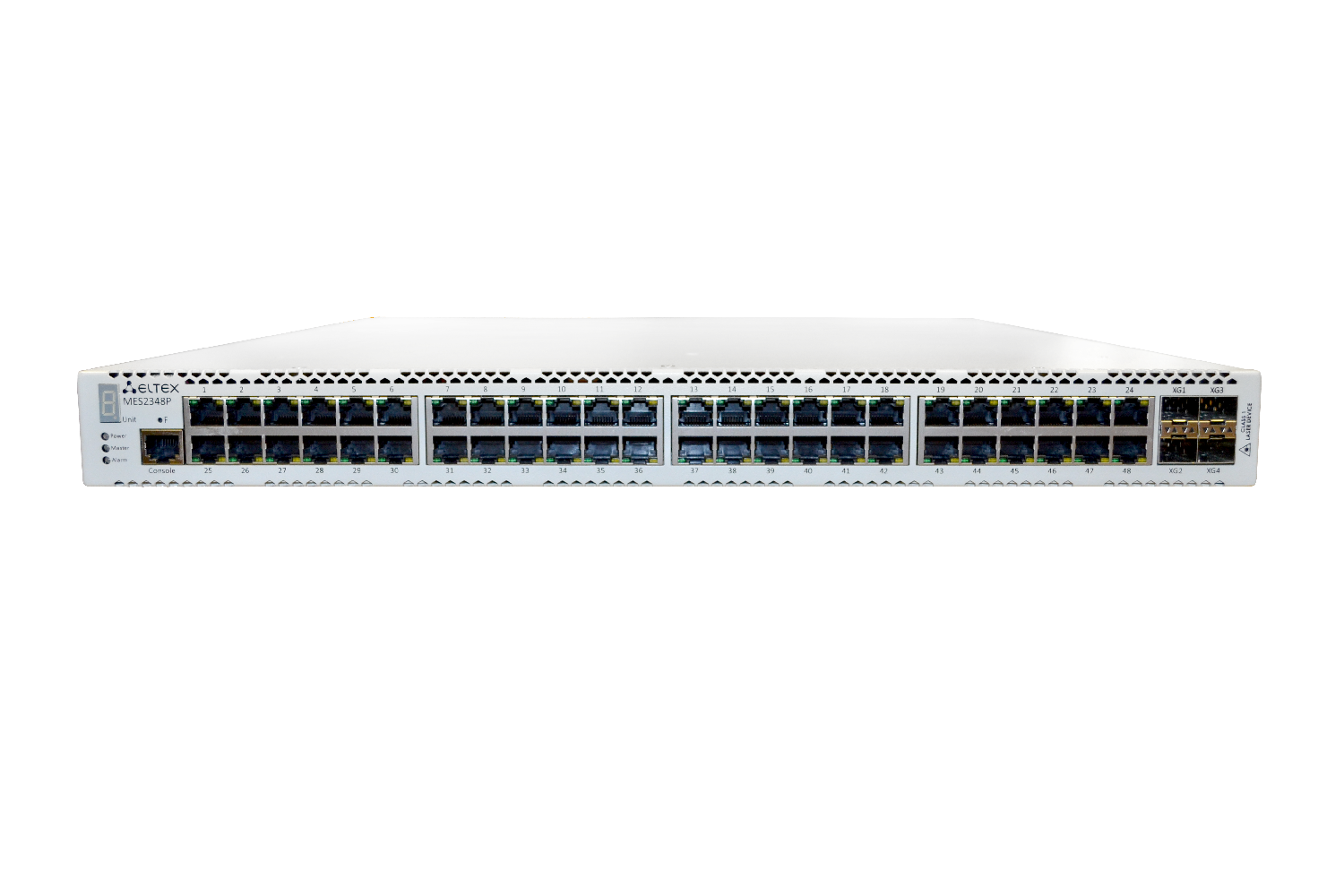

Ethernet Access Switch MES2348P

Key benefits

L2+ switches
Stacking support
Multicast support (IGMP Snooping, MVR)
Advanced security functions (L2-L4 ACL, IP Source Guard, Dynamic ARP Inspection, etc.)

Short description
The new generation of MES access switches are managed L2+ switches which have 24 or 48 10/100/1000BASE-T ports with PoE/PoE+ support and 4 10GBASE-R (SFP+)/1000BASE-X (SFP) ports. The switches are designed to connect end users to large-scale, medium and small enterprise networks and to service provider networks using 1G/10G Ethernet interfaces. The switches support physical stacking, VLANs and multicast groups, as well as advanced security features.

Interfaces

Marvel 2x98DX3236
RS-232/RJ-45
48x10/100/1000BASE-T (RJ-45) PoE/PoE+
4x10GBASE-R (SFP+)/1000BASE-X (SFP)

Interfaces functions

Head-of-line blocking (HOL) prevention
Back Pressure
Auto MDI/MDIX
Jumbo Frames support
IEEE 802.3X Flow control
Port Mirroring

MAC table functions

Independent learning mode per VLAN
MAC Multicast Support
Configurable aging time of MAC addresses per VLAN
Static MAC Entries
MAC Flapping

VLAN functions

Voice VLAN
802.1Q
Q-in-Q
Selective Q-in-Q
GVRP

L2 Multicast functions

Multicast profiles
Static Multicast groups
IGMP Snooping v1,2,3
Port/host-based IGMP Snooping Fast Leave
IGMP authorization via RADIUS
MLD Snooping v1,2
IGMP Querier
MVR

L2 functions

STP (Spanning Tree Protocol, IEEE 802.1d)
RSTP (Rapid Spanning Tree Protocol, IEEE 802.1w)
MSTP (Multiple Spanning Tree Protocol, IEEE802.1s)
STP Multiprocess
Spanning Tree Fast Link option
EAPS¹
STP Root Guard
STP Loop Guard
BPDU Filtering
STP BPDU Guard
VLAN-based Loopback Detection (LBD)
ERPS (G.8032v2)
Private VLAN
Layer 2 Protocol Tunneling

L3 functions

Static IP routes
Support for dynamic routing protocols: RIPv2, OSPFv2, OSPFv3
Address Resolution Protocol (ARP)
Support for VRRP
Support for dynamic multicast routing protocols: PIM SM, IGMP Proxy

Link Aggregation functions

Static LAG
Dynamic LAG (LACP)
LAG Balancing Algorithm

IPv6 functions

IPv6 Host
Dual-stack

Service functions

Virtual Cable Testing (VCT)
Optical transceiver diagnostics
Green Ethernet

Security functions

DHCP Snooping
DHCP Option 82
IP Source Guard
Dynamic ARP Inspection
sFlow
MAC-based authentication, Port Security, Static MAC entries
Port-based authentication IEEE 802.1x
Guest VLAN¹
DoS attack prevention
Traffic segmentation
Protection against non-authorized DHCP servers
DHCP clients filtering
BPDU attacks prevention
NetBIOS/NetBEUI filtering
PPPoE Intermediate Agent

ACL (Access Control Lists)

L2-L3-L4 ACL
Time-Based ACL
IPv6 ACL
ACL based on:
- Physical port number
- IEEE 802.1p
- VLAN ID
- EtherType
- DSCP
- Protocol type
- TCP/UDP port number
- User Defined Bytes

Quality of Service (QoS) and rate limiting

QoS statistics
Shaping, Policing
IEEE 802.1p Class of Service (CoS)
Storm Control
Bandwidth management
Scheduling algorithms: Strict Priority/Weighted Round Robin (WRR)
Three marking colors
ACL-based CoS/DSCP assignment
802.1p priority configuration for Management VLAN
DSCP to CoS and CoS to DSCP remarking
ACL-based VLAN assignment

ОАМ/CFM

802.3ah Ethernet Link OAM
Dying Gasp
802.1ag Connectivity Fault Management (CFM)¹
802.3ah Unidirectional Link Detection

Main management functions

Download and upload of configuration file via TFTP/SCP
SNMP
Command Line Interface (CLI)
Web interface
Syslog
SNTP (Simple Network Time Protocol)
Traceroute
LLDP (802.1ab) + LLDP MED
Access control – privilege levels
Management interface blocking
Local authentication
IP addresses filtering for SNMP
RADIUS and TACACS+ (Terminal Access Controller Access Control System) clients
SSH server
SSL
Macrocommands
CLI commands logging
DHCP autoprovision
DHCP Relay (IPv4 support)
DHCP Option 12
DHCP Relay Option 82
PPPoE Circuit-ID tag
Flash File System
Debugging commands
Rate limit of traffic to CPU
Password encryption
Password recovery
Ping (IPv4/IPv6 support)
FTP server^¹

Monitoring functions

Interface statistics
RMON/SMON
CPU utilization monitoring per tasks
Temperature monitoring
TCAM utilization monitoring
RAM utilization monitoring

MIB

RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
RFC 1212 Concise MIB Definitions
RFC 1213 MIB II
RFC 1215 MIB Traps Convention
RFC 1493, 4188 Bridge MIB
RFC 1157, 2571-2576 SNMP MIB
RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
RFC 271,1757, 2819 RMON MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMPv6 MIB
RFC 2737 Entity MIB
RFC 4293 IPv6 SNMP Mgmt Interface MIB
Private MIB
RFC 3289 DIFFSERV MIB
RFC 2021 RMONv2 MIB
RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
RFC 2668 802.3 MAU MIB
RFC 2674, 4363 802.1p MIB
RFC 2233, 2863 IF MIB
RFC 2618 RADIUS Authentication Client MIB
RFC 4022 MIB для TCP
RFC 4113 MIB для UDP
RFC 3298 MIB для Diffserv
RFC 2620 RADIUS Accounting Client MIB
RFC 2925 Ping & Traceroute MIB
RFC 768 UDP
RFC 791 IP
RFC 792 ICMPv4
RFC 2463, 4443 ICMPv6
RFC 4884 Extended ICMP for Multi-Part messages support
RFC 793 TCP
RFC 2474, 3260 DS field in the IPv4 and IPv6 header
RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
RFC 2571, RFC2572, RFC2573, RFC2574 SNMP
RFC 826 ARP

_____________________________________
^¹Not supported in the current firmware version 4.0.7
