Ethernet access switch MES2324B

L2+ switches
Stacking support
Multicast support (IGMP, IGMP snooping, MVR)
Extended safety services (L2-L4 ACL, IP Source address guard, Dynamic ARP Inspection and etc.)

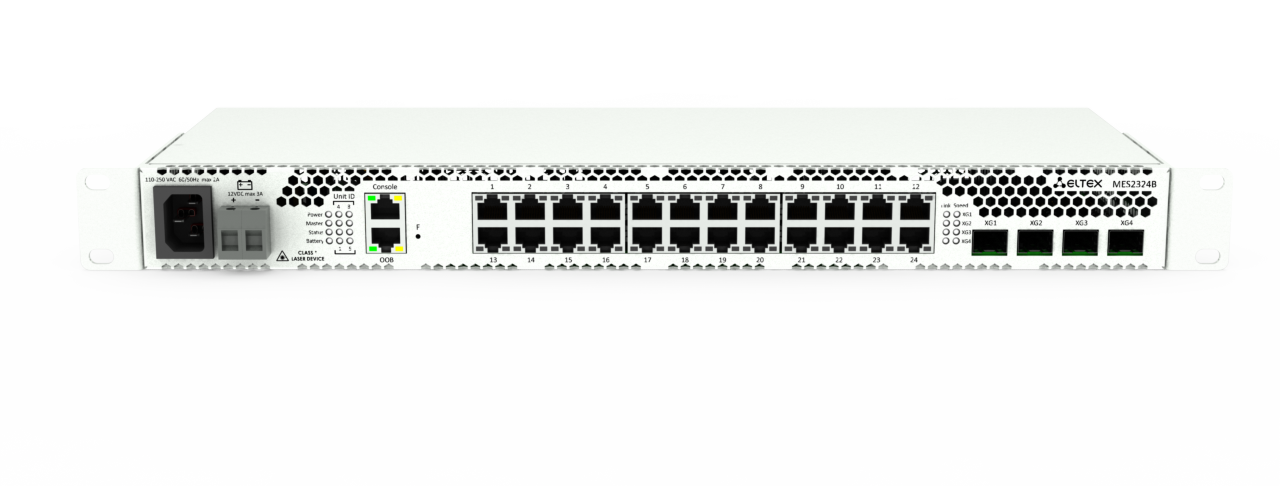

MES Access switch is a controlled switch of L2+ level that have 24 ports 10/100/1000Base-T and 4 ports 10GBase-X (SFP+)/1000Base-X (SFP).

Switches provide enduser connection to the network of big businesses, small and medium-sized businesses and connection to the network of communication providers via Gigabit Ethernet interfaces.

Switch functionalities provide physical stacking, support of VLAN and multicast groups of sending and extended safety services.

Interface functions

HOL blocking protection
Back pressure routing support
Auto MDI/MDIX support
Jumbo frames support
IEEE 802.3X flow control
Port mirroring
Stacking, up to 8 devices in stack1

МAC-address processing functions

MAC-addresses table 16K
Independent mode of learning for each VLAN
MAC Multicast Support
Automatic aging for MAC-addresses
Static MAC Entries

VLAN support

Up to 4K VLAN
Voice VLAN support
802.1Q support
Q-in-Q support
Selective Q-in-Q support
GVRP support

L2 Multicast functions

1K group support
Multicast profiles support
Mullticast static group support
GMP Snooping v1,2,3 support
GMP Snooping Fast Leave support on the base of port/host
IGMP authorization support via RADIUS
MLD Snooping v1,2 support
GMP Querier support
MVR support

L2 functions

STP (Spanning Tree Protocol, IEEE 802.1d) protocol support
RSTP (Rapid spaning tree protocol, IEEE 802.1w) support
MSTP (Multiple Spanning Tree, IEEE802.1s) support
STP Mulitprocess¹ support
Spanning Tree Fast Link option support
EAPS¹ support
STP Root Guard support
BPDU Filtering support
STP BPDU Guard support
Loopback Detection (LBD) support
ERPS (G.8032v2)¹ support

Link Aggregation functions

LAG group creation
Multiplexing via LACP
LAG Balancing Algorithm support

Ipv6 support

IPv6 Host functionality
Ipv4, Ipv6 shared usage

Service function

Virtual cable testing (VCT)
Optical transceiver diagnostic
Green Ethernet

Security functions

DHCP snooping
DHCP protocol option 82
IP Source address guard
Dynamic ARP Inspection
sFlow support
MAC-address based authentication, MAC-addresses number limitation, Static MAC-addresses
Port-based authentication (802.1x)
Guest VLAN
DoS-attack security system
Traffic segmentation
Protecting against nonauthorized DHCP servers
DHCP client filtering
BPDU attack prevention
NetBIOS/NetBEUI filtering
PPPoE Intermidiate agent¹

ACL access control list

L2-L3-L4 ACL (Access Control List)
Time-Based ACL support
IPv6 ACL
Up to 1024 access rights
ACL based on:
– Switch port
– Priority 802.1p
– VLAN ID
– Ether type
– DSCP
– Protocol type
– TCP/UDP port number
– User Defined Bytes¹

Quality of service (QoS) and bit rate limitation basic functions

QoS/CoS support
QoS statistic
Port rate limiting (shaping, policing)
Support up to 8 priority queues
802.1p class of service support
Protection against Broadcast Storm
Bandwidth management
Queues processing via Strict priority/Weighted Round Robin (WRR) algorithms
Three marking colors
ACL-based traffic classification
ACL-based destination of CoS/DSCP marks

ОАМ/CFM¹

802.3ah Ethernet Link OAM
Dying Gasp
802.1ag Connectivity Fault Management (CFM)
802.3ah Unidirectional LinkDetection (Detection protocol of one-way communications)

Switch control functions

Configuration file download and upload of the via TFTP
SNMP protocol
Command line interface (CLI)
Web-interface¹
Syslog
SNTP (Simple Network Time Protocol)
Traceroute
LLDP (802.1ab) + LLDP MED
Managment of the controlled access- privilege levels
Control interface bloking
Local authentication
IP-addresses filtering for SNMP
Client RADIUS, TACACS+ (Terminal Access Controller Access Control System)
SSH server
SSL support
Macrocommand support
Input command journaling
System log
DHCP autoconfig
DHCP Relay (Ipv4 support)
DHCP Option 12
DHCP Relay Option 82
PPPoE Circuit-ID¹ tag addition
Flash File System
Debagging commands
Traffic limiting mechanism in the direction of CPU¹
Password encryption
Password reset
Ping (IPv4/IPv6 support)
FTP¹ server

Monitoring functions

Interface statistic
RMON/SMON remote monitoring
CPU load monitoring support by tasks
Memory monitoring
Temperature monitoring
TCAM monitoring

MIB

RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
