Aggregation 10G switch MES5324

Overview
Specifications
Reviews
  • Bandwidth 800 Gbps
  • Non-blocking architecture
  • 24x10G ports, 4x40G ports
  • L3 switch
  • Front-to-back cooling
  • Stacking up to 8 devices
  • Hot-swappable redundant power supplies
  • Hot-swappable fans

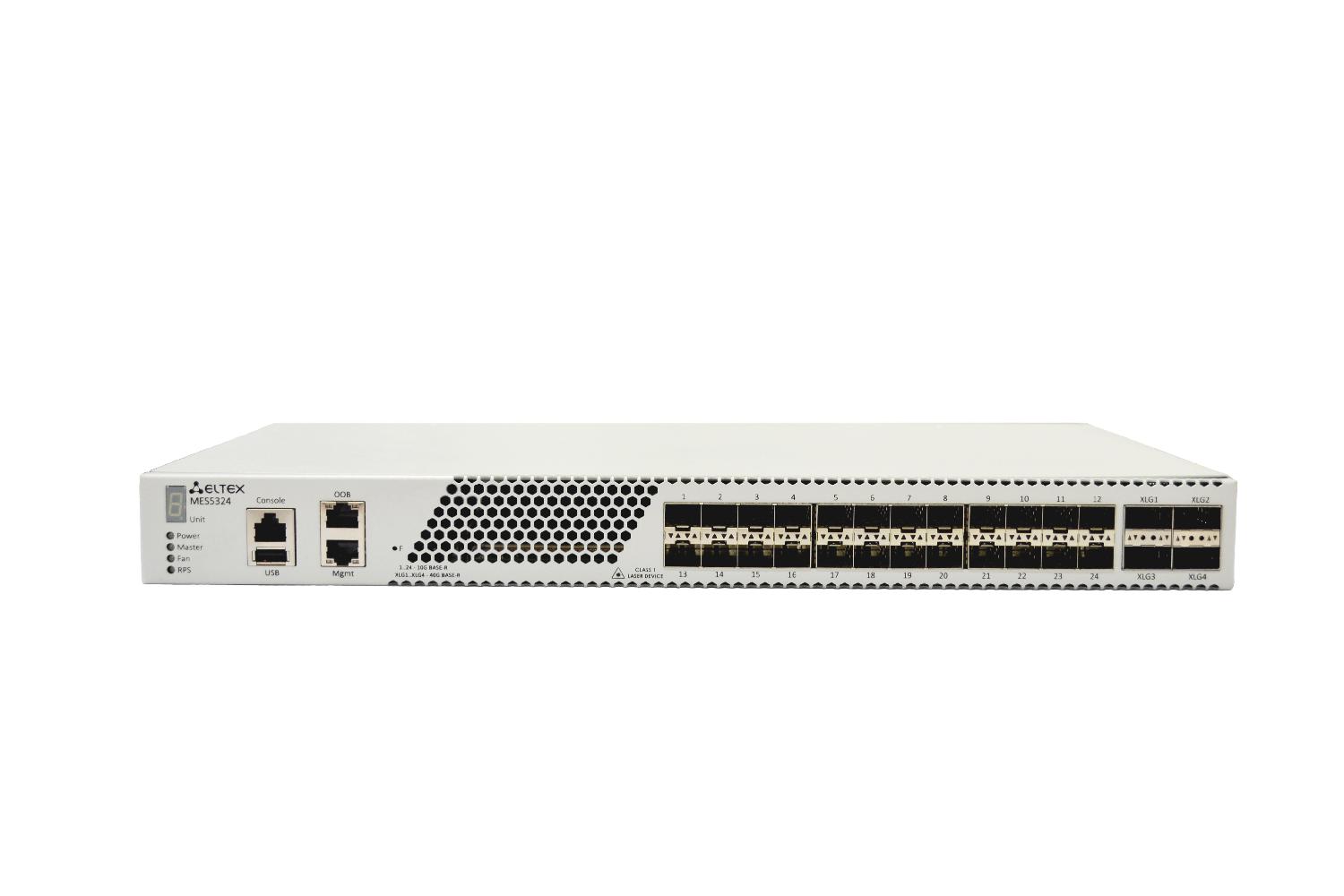

MES5324 switches are high performance devices with 10GBASE-R and 40GBASE-SR4/LR4 interfaces that can be used as aggregation or transport switches in carrier networks and as Top-of-Rack or End-of-Row switches for data centers.

The non-blocking architecture guarantees lossless packet forwarding at wire speed with minimum and predictable delays for all types of traffic. The front-to-back cooling provides effective cooldown in modern data centers.

The redundant and hot-swappable fans and AC/DC power supplies with advanced hardware monitoring functions provide high reliability and uninterrupted services.

Parameters
  • Packet processor Marvell98CX8129
  • Interfaces:
    - 1x10/100/1000Base-T (ООВ)
    - 1х10/100/1000Base-T (Management in-band)
    - 24x(10G Base-X(SFP+)/1000Base-X (SFP)
    - 4x40G Base-SR4/LR4 (QSFP)
  • Console port RS-232/RJ-45
  • Bandwidth 800 Gbps
  • Buffer memory 32 Mbit
  • MAC table 64K
  • VLAN table 4K
  • L2 Multicast groups 4К
  • ARP table¹
  • Link Aggregation Groups (LAG): 16, up to 8 ports per LAG
  • Quality of Service (QoS): 8 egress queues per port
  • TCAM: for routing: 8192; for traffic processing: 8192х24 В
  • Jumbo frames size: 10240 bytes
  • Stacking: 8 devices
Physical parameters
  • Power: 220V +-20%, direct current network -36..-72V
  • Power supply: one power source of direct or alternative current or two power sources of direct or alternative current with hot change
  • Max power consumption 85W
  • Front-to-back ventilation, 4 fans
  • Operating temperature from -5°C..+50°C
  • Operating humidity 80% max
  • Storage temperature -40°C..+70°C
  • Dimensions 430x298x44 mm
  • Weight 3.95 kg
Interface functions
  • Head-of-line blocking (HOL) protection
  • Back Pressure
  • Auto MDI/MDIX
  • Jumbo Frames
  • Flow Control (IEEE 802.3X)
  • Port Mirroring
  • Stacking
MAC addresses functions
  • Independent learning mode per VLAN
  • MAC Multicast Support
  • Configurable aging time of MAC addresses per VLAN
  • Static MAC Entries
  • MAC Flapping detection
VLAN functions
  • Voice VLAN
  • IEEE 802.1Q
  • Q-in-Q
  • Selective Q-in-Q
  • GVRP
L2 Multicast functions
  • Multicast profiles
  • Static Multicast groups
  • IGMP Snooping v1,2,3
  • Port/host-based IGMP Snooping Fast Leave
  • IGMP authorization via RADIUS
  • MLD Snooping v1,2
  • IGMP Querier
  • MVR
L2 functions
  • STP (Spanning Tree Protocol, IEEE 802.1d)
  • RSTP (Rapid Spanning Tree Protocol, IEEE 802.1w)
  • MSTP (Multiple Spanning Tree Protocol, IEEE802.1s)
  • STP Multiprocess
  • Spanning Tree Fast Link option
  • Layer 2 Protocol Tunneling
  • Private VLAN
  • ERPS (G.8032v2)
  • Loopback Detection (LBD) per VLAN
  • STP BPDU Guard
  • BPDU Filtering
  • STP Loop Guard
  • STP Root Guard
  • EAPS¹
L3 functions
  • Static IP routes
  • RIPv2, OSPFv2, OSPFv3
  • Address Resolution Protocol (ARP)
  • VRRP
  • PIM SM, IGMP Proxy
Link Aggregation functions
  • Static LAG
  • Dynamic LAG (LACP)
  • LAG Balancing Algorithm
IPv6 functions
  • IPv6 Host
  • Dual-stack
Service functions
  • Virtual Cable Testing (VCT)
  • Optical transceiver diagnostics
  • Green Ethernet
Security functions
  • DHCP Snooping
  • DHCP Option 82
  • IP Source Guard
  • Dynamic ARP Inspection
  • sFlow
  • MAC-based authentication, Port Security, Static MAC entries
  • Port-based authentication IEEE 802.1x
  • Guest VLAN¹
  • DoS attack prevention
  • Traffic segmentation
  • Protection against non-authorized DHCP servers
  • DHCP clients filtering
  • BPDU attack prevention
  • NetBIOS/NetBEUI
  • PPPoE Intermediate agent
Quality of Service (QoS)
  • QoS statistics
  • Shaping, Policing
  • IEEE 802.1p Class of Service (CoS)
  • Storm Control
  • Bandwidth management
  • Scheduling algorithms: Strict Priority/Weighted Round Robin (WRR) algorithms
  • Three marking colors
  • ACL-based CoS/DSCP assignment
  • ACL-based VLAN assignment
  • Setting the IEEE 802.1p priority for management VLAN
  • DSCP to CoS/CoS to DSCP remarking
OAM
  • 802.3ah Ethernet OAM
  • Dying Gasp
  • 802.1ag Connectivity Fault Management (CFM)¹
  • 802.3ah Unidirectional Link Detection
ACL (Access Control List)
  • L2-L3-L4 ACL
  • Time-Based ACL
  • IPv6 ACL
  • ACL based on:
    - Physical port number
    - IEEE 802.1p
    - VLAN ID
    - EtherType
    - DSCP
    - Protocol type
    - TCP/UDP port number
    - User Defined Bytes
Management functions
  • Download and upload of configuration file via TFTP
  • SNMP
  • Command Line Interface (CLI)
  • Web interface
  • Syslog
  • SNTP (Simple Network Time Protocol)
  • Traceroute
  • LLDP (802.1ab) + LLDP MED
  • Access control – privilege levels
  • Management interface blocking
  • Local authentication
  • IP addresses filtering for SNMP
  • RADIUS and TACACS+ (Terminal Access Controller Access Control System) clients
  • SSH server
  • SSL
  • Macrocommands
  • CLI commands logging
  • System log
  • DHCP autoprovision
  • DHCP Relay (IPv4 support)
  • DHCP Option 12
  • DHCP Relay Option 82
  • PPPoE Circuit-ID tag
  • Flash File System
  • Debugging commands
  • Rate limit of traffic to CPU
  • Password encryption
  • Password recovery
  • Ping (IPv4/IPv6 support)
  • FTP server¹
MIB/IETF
  • RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
  • RFC 1212 Concise MIB Definitions
  • RFC 1213 MIB II
  • RFC 1215 MIB Traps Convention
  • RFC 1493, 4188 Bridge MIB
  • RFC 1157, 2571-2576 SNMP MIB
  • RFC 1901-1908, 3418, 3636, 1442, 2578 SNMPv2 MIB
  • RFC 271,1757, 2819 RMON MIB
  • RFC 2465 IPv6 MIB
  • RFC 2466 ICMPv6 MIB
  • RFC 2737 Entity MIB
  • RFC 4293 IPv6 SNMP Mgmt Interface MIB
  • Private MIB
  • RFC 3289 DIFFSERV MIB
  • RFC 2021 RMONv2 MIB
  • RFC 1398, 1643, 1650, 2358, 2665, 3635 Ether-like MIB
  • RFC 2668 802.3 MAU MIB
  • RFC 2674, 4363 802.1p MIB
  • RFC 2233, 2863 IF MIB
  • RFC 2618 RADIUS Authentication Client MIB
  • RFC 4022 MIB for TCP
  • RFC 4113 MIB for UDP
  • RFC 3298 MIB for Diffserv
  • RFC 2620 RADIUS Accounting Client MIB
  • RFC 2925 Ping & Traceroute MIB
  • RFC 768 UDP
  • RFC 791 IP
  • RFC 792 ICMPv4
  • RFC 2463, 4443 ICMPv6
  • RFC 4884 Extended ICMP for Multi-Part messages support
  • RFC 793 TCP
  • RFC 2474, 3260 DS field in the IPv4 and IPv6 header
  • RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
  • RFC 2571, RFC2572, RFC2573, RFC2574 SNMP
  • RFC 826 ARP
Monitoring functions
  • Interface statistics
  • RMON/SMON
  • CPU utilization monitoring per task and per traffic type
  • RAM utilization monitoring
  • Temperature monitoring
  • TCAM utilization monitoring
Data Center Bridging (DCB) functions¹
  • IEEE 802.1Qau Congestion Notification (QCN)
  • IEEE 802.1Qaz Enhanced Transmission Selection (ETS)
  • IEEE 802.1Qbb Priority-Based Flow Control (PFC)
  • Cut-through switching
    1Not supported in the current firmware version (4.0.7)
